Adjusting the video
signals
1. Time Base Corrector |
2. Waveform monitor |
3. Vectorscope monitor |
4. IKEGAMI monitor |
---|
The TBC is used to correct your signal.
ATTENTION:
you do not use the knobs on the waveform or the vectorscope monitors to
correct your signal. This is what the TBC is for.
The WAVEFORM and VECTORSCOPE monitors
The waveform and a vectorscope
monitors are used to see what your signal looks like.

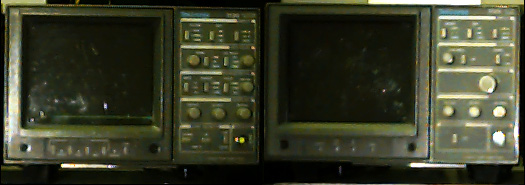

There is a waveform and a vector scope monitor connected to the Sony Betacam
system. Both monitors sit on top of the video editing desk.
When checking your video on
the waveform monitor, make sure that:
The vectorscope monitor looks at the phasing of the color.
is located on the top of all decks, next to the waveform amd vectorscope monitors. It displays the TRUE, engineeringly correct image.
Component (Betacam) |
y r-y b-y |
S-Video (Hi-8, SVHS) |
Y/C |
Composite (lower-end VHS) |
C |
