# Week 6

## Geospatial Visualization

A few examples to start  ...

NY Times - (flash based)  Mapping America
http://projects.nytimes.com/census/2010/explorer?ref=us

here is a nice map of cell phone strength
http://webcoveragemap.rootmetrics.com/us

What can we say about the people in an area - http://www.esri.com/data/esri_data/ziptapestry

some perceptual issues that affect all types of visualization.

Photograph of the Cortical Homunculus from the Natural History Museum in London (Wikipedia)

Visual contrasts established by manipulating perceptual qualities

the following are retinal variables - perceived immediately and effortlessly - fundamental units of visual communication

• Size
• Value (saturation)
• Orientation
• Texture
• Shape
• PositVerdana;ion
• Hue

Information represented in a visual display is characterized by

• Number of dimensions (things being measured)
• Length of each dimension (number of possible values in each dimension)
• Scale of measurement for each dimension
• nominal (categorical) (associative, selective) - distinct categories should be obvious (e.g. representations of census data on religion, or gender, or martial status or hair color or whether you call a carbonated soft drink pop / soda / coke)
• ordered - determine relative ordering - which one is 'more' than the other should be obvious (e.g. representations of questionnaire answers with low, medium, high options)
• quantitative - determine amount of difference between ordered values - how much 'more' should be obvious (e.g. representations of census data on age in years or income in dollars)
• interval - ordering of the data plus explicit numerical differentiation between those categories (e.g. temperature values) with an arbitrary zero point - e.g. SAT scores, temperature in F & C
• getting 2x an SAT score doesn't mean you are twice as smart
• 20 degrees C is not twice as hot as 10 degrees C
• ratio - ordering of the data plus explicit numerical differentiation between those categories (e.g. temperature values) with a non-arbitrary zero point (e.g. temperatures in degree kelvin)

so lets do an example. The data from Project 1 included the following 19 dimensions. Take a few minutes, break into small groups and decide on the length and scale of each of these dimensions.

State
County
Year
Days with AQI
Good Days
Moderate Days
Unhealthy for Sensitive Groups Days
Unhealthy Days
Very Unhealthy Days
Hazardous Days
Max AQI
90th Percentile AQI
Median AQI
Days CO
Days NO2
Days Ozone
Days SO2
Days PM2.5
Days PM10

Nominal
- User interested in categorizing

In associative perception the viewer ignores variation in one visible dimension in reading the remainder of the display

An associative variable does not affect the visibility of other dimensions (e.g. we can recognize hue regardless of orientation.) A variable is dissociative if visibility is significantly reduced for some values along that dimension (e.g. its hard to determine hue of a very thin line or small dot)

Hue, Orientation, Texture, Shape, Position are associative

Size and Value are dissociative - they dominate perception and disrupt processing of other correlated dimensions

In selective perception viewer attempts to isolate all instances of a given category and perceptually group them into a single image. The task is to ignore everything but the target value on the dimension of interest - to see at a glance where all the targets are within the display

All the variables except shape are selective

In ordered perception the viewer must determine the relative ordering of values along a perceptual dimension. Given any two visual elements, a natural ordering must be clearly apparent so the element representing 'more' of the corresponding quality is immediately obvious

Position, size, and value are ordered

In quantitative perception the viewer must determine the amount of difference between two ordered values. The user does not need to refer to an index or key - the relative magnitudes must be immediately apparent

Position and size are quantitative

Visual variables differ substantially in length:

• Shape is longest - almost infinite variety but can be hard to tell apart if they are too similar
• Position in 2D space is limited by display size and resolution, but very fine grained
• Size and color 10-15
• Value and texture support less than 10
• Orientation is shortest - confusion arises if more than 4 levels are attempted

here are some more examples from our textbook:

### Back to Colour Blindness

lets run it on one of the 'obvious' examples above ... its not that obvious if you are colour blind.

This chapter from Thematic Cartography and Geovisualization, 3rd ed. by Slocum, McMaster, Kessler, and Howard gives a nice introduction on mapping data to symbols.

A lot of data today can represented geographically, as the popularity of Google maps / earth can attest to, so its a nice place to start looking at details.

### Nature of Geographic Phenomena: Spatial Dimension

• 0d - point phenomena located in 2d or 3d space (e.g. data collected at weather monitoring stations)
• 1d - linear phenomena (e.g. the path an AUV or a drone takes while taking measurements)
• 2d - areal phenomena (e.g. data collected on the surface of a lake)
• 2.5d - volumetric phenomena - each x, y position has a single z value associated with it (e.g. the maximum depth at any point in the lake)
• 3d - volumetric phenomena - each x, y, z position has a value associated with it (e.g. the ph values collected at various points and depths in the lake)

Discrete vs Continuous and Abrupt vs Smooth Phenomena
discrete - occur at distinct locations (and have a space between them)
continuous - occur throughout a region of interest

abrupt - can change suddenly

Figure 5.1 from Thematic Cartography showing phenomena and appropriate ways of representing them

Distinction between data that has been collected to represent a phenomenon and the phenomenon being mapped
i.e. we are typically collecting data at discrete sites (weather stations, well sites) or aggregating over small regions (counties, states) where the actual phenomena being modeled is continuous. Other times we are collecting discrete data on a discrete phenomena.

Type of visualization used depends both on the nature of the underlying phenomenon and the purpose of the map

We previously looked at a variety of weather maps where the data was collected from a set of discrete weather stations but formed a very smooth continuous map. We looked at  the pop / soda / coke map where the data was collected from discrete individuals but formed a less smooth and less continuous map. We looked at the map for gas prices which showed abrupt changes on political boundaries. We looked at the map of target stores opening that had very discrete points.

Visual Variables:

visual variables for qualitative should reflect only a nominal level of measurement - i.e. there shouldn't be a sense that one value is 'more' than another, just that they are different.

• orientation - direction/orientation of the marks/symbol
• shape - different shapes are used
• arrangement - different arrangement of marks making up the symbol
• hue - different colors are used but careful choices need to be made here so there is NO sense of 'less' to 'more' in the different hues

Figure 5.4 from Thematic Cartography

so for example as I look at the areal visualization I don't (and I shouldn't) get a sense of which area is higher or lower, or has more cows, etc.

Why are 2.5D representations not recommended for qualitative phenomena?

note that only different hues are used for qualitative data - not saturation or lightness which have an obvious ordering

much of this work was done at a time when a line plotter was the tool to make drawings like this, giving very high resolution vector black and white drawing capability. Today those maps still exist but more work is done on bitmapped displays with lower resolution but a greater use of colour.

Here is a more appropriate use of a wide variety of colors showing data from facebook on the favorite American Football teams for various counties, though not without its problems.

visual variables for quantitative should reflect ordinal, interval, or ratio level of measurement
• spacing (texture) - smaller spacing between marks suggest higher value
• size - larger symbol or larger marks making up the symbol suggests a higher value

• perspective height - higher elevation suggests a higher value (cant be used for 3D phenomena because all 3 dimensions are already in use)

• color (hue) - what is the dominant wavelength (red, green, blue, etc but careful choices need to be made here so there IS a sense of 'less' to 'more' in the progression on hues)
• color (lightness) - how light or dark the color is (light green, dark green)
• color (saturation) - how far is the intensity is from grey (bright red, muted red)

so for example as I look at the areal visualization I do get a sense of which area is higher or lower.

here is an example of different ways of using colour to map life expectancy in the US which is quantitative. Which is more readable?

the first is from mapoftheunitedstates.org

the second is from www.measureofamerica.org

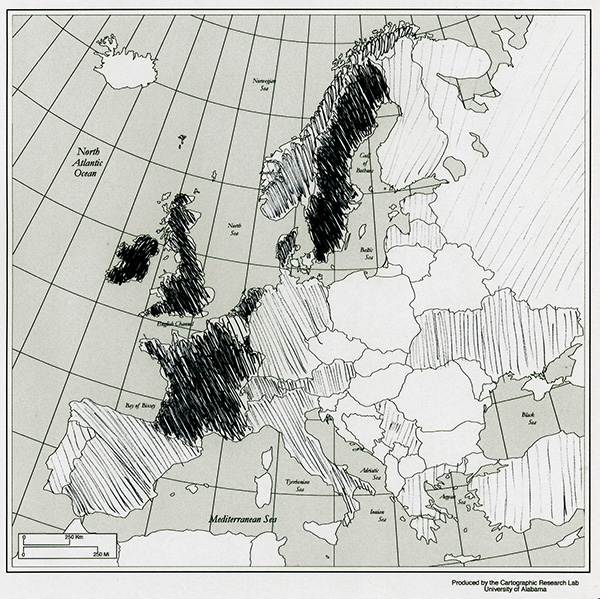

So, lets try an in class activity to make this more clear, and for that we will take a look at mapping the data for the winning countries of the Eurovision Song Contest from 1956 to the present - https://en.wikipedia.org/wiki/Eurovision_Song_Contest

Here are the totals:

 Wins Countries 7 Ireland 6 Sweden 5 France, Luxembourg, United Kingdom 4 Netherlands, Israel 3 Norway, Denmark 2 Spain, Switzerland, Italy, Germany, Austria, Ukraine 1 Monaco, Belgium, Yugoslavia, Estonia, Latvia, Turkey, Greece, Finland, Serbia, Russia, Azerbaijan, Portugal

and there is a current map of Europe available here:

There are also pictographic symbols

Here its pretty easy to make rough comparisons - its tricky to make exact comparisons as its hard to avoid the lie factor we talked about last week. Even avoiding that, we have to be careful about the conclusions drawn from an image like this. The states have very different populations (as we talked about last week comparing Wyoming to California) and its not directly correlated to the size of the state.

One issue directly related to the size of the states is the overlap of the icons in the northeast making it hard to make any sense of the data there.

Thoughts on the in-class assignment.

One of the main ideas was to show that even with small datasets it can be hard
- some locations / countries / streets / buildings may no longer exist
- some locations may be very small and harder to shade, color, or add glyphs to
- some locations may be off the map

Comparison of choropleth, proportional symbol, isopleth, and dot mapping:

choropleth
• commonly used to portray data collected for units such as counties or states
• regions are shaded / colored based on the phenomena
• good for when values change abruptly at unit boundaries but hides variation within units, and the boundaries may be artificial in relation to the phenomena.

isopleth (contour map)
• good when data collected was from a smooth continuous phenomenon
• regions are shaded / colored based on the phenomena
• interpolating set of isolines between sample points of known values

proportional symbol
• scale symbols in proportion to the magnitude of the data
• symbol might be a true point (located at a data collection point) or a conceptual point (at the center of a unit)

dot mapping
• one dot is set equal to a certain amount of the phenomenon
• dots should be placed where the phenomena occurs (much higher level of accuracy than other maps)

Figure 5.10 from Thematic Cartography

and again lets go back to our favorite question, how would you enhance these visualizations if they were software-based?

Selecting visual variables for choropleth maps

Figure 5.11 from Thematic Cartography

 Nominal Ordinal Numerical Spacing P Mc Mc Size P M M Perspective Height P Ma Gb Orientation G P P Shape G P P Arrangement G P P Lightness P G M Hue G Gd Md Saturation P M M

P = Poor       M = Marginally Effective      G = Good

a - Since height differences are suggestive of numerical differences, use with caution for ordinal data
b - Hidden enumeration units and lack of a north orientation are problems
c - Not aesthetically pleasing
d - The particular hue selection must be carefully ordered, such as yellow, orange, red

Here is a good example using different colour maps for data on high-school graduation percentages in the US

Here are some other ways of displaying data from Information Graphics -  A Comprehensive Illustrated Reference

Here is another New York times example - this time for the 2009 Afghanistan election
http://www.nytimes.com/interactive/2009/09/21/world/asia/0921-afghan-election-analysis.html

and back to Information Graphics

Here is an image showing crime statistics compared to the average over time for the US from CommonGIS via the Thematic Cartography and Geovisualization book

Here are some interesting examples from the US Environmental Protection Agency: https://gispub.epa.gov/air/trendsreport/2017/#highlights

and here are some other nice more general examples:
http://mapscroll.blogspot.com/

and here are some variations of the typical red/blue election map for the 2008 presidential election
http://www-personal.umich.edu/~mejn/election/2008/

and a different way to view election data using dots by John Nelson
http://uxblog.idvsolutions.com/2012/11/election-2012.html

and a 2019 solution to the problem by making each US congressional district the same size and trying to keep the states in the correct shape and relative position to each other, though the locations of the districts themselves within each state are only correct relative to each other.

and a nice interactive processing example for US zip codes: http://benfry.com/zipdecode

When looking at much larger regions of the planet the issues are a bit more complex. A 'flat' map can be a good way to see data from all over the planet simultaneously, but it does add in distortions as the earth is sphere-ish, and trying to represent a sphere, or even a portion of it, on a rectangular plane will generate errors. Other tools like Google Earth can be used to map data onto a spherical Earth model, but then there are issues of only being able to see part of the planet at one time.

First some definitions:

the Earth (which is close to being a sphere) rotates about its axis of rotation which passes through the North and South Poles (and note the North Pole is nowhere near the North Magnetic Pole)

We can place a plane halfway between the North Pole and the South Pole and perpendicular to that axis. Where that plane intersects the surface of the Earth we have the Equator allowing us to split the planet into the Northern Hemisphere and the Southern Hemisphere.

Any point on the Earth's surface can be given by its Latitude and Longitude. They are measured in degrees, minutes, and seconds. Each degree ° is divided into 60 minutes ' and each minute into 60 seconds ". Any position on the surface of the Earth can be given by these two angles.

Lines of latitude (parallels) are parallel to each other and the equator. The North Pole is 90 degrees North or +90. The equator is 0. The South Pole is 90 degrees South or -90 degrees.

Lines of Longitude (meridians) run from pole to pole so they are not parallel to each other. Where is equator makes a nice 0 point for latitude there is no obvious 0 point for longitude so the Prime Meridian is declared to run through the Royal Observatory in Greenwich England. On the opposite side of the planet from the Prime Meridian the longitude is 180 degrees west, or +180 degrees  and 180 degrees east, or - 180 degrees, and is mostly where the International Dateline is chosen to exist. The US is west of the prime meridian.

We are at 41 degrees, 52 minutes, 13 seconds North and 87 degrees, 38 minutes, and 51 seconds West here in Chicago

another common system in use is UTM http://en.wikipedia.org/wiki/UTM_coordinates
and a big map of them here: http://upload.wikimedia.org/wikipedia/commons/e/ed/Utm-zones.jpg

Data related to the planet also comes referenced in multiple ways. Some data will be in feet / meters / miles / kilometers from a known 0,0 point, some will be given as Latitude, Longitude, some in UTM coordinates. All of them may need to be combined  to integrate the data.

issues of  different map projections - http://en.wikipedia.org/wiki/Map_projection

Here is a nice example from FlowingData showing the true size of Africa - http://flowingdata.com/2010/10/18/true-size-of-africa/

and a nice xkcd explanation

and a nice interactive page letting you move countries around - https://thetruesize.com

We also often need to deal with data points above / below the surface of the Earth - e.g. earthquake hypocenters

Often deal with continuous data represented by discrete sampling

A familiar example is a weather map showing the current temperature across the state or country, but the data is only sampled at certain scattered stations which is then interpolated. You can click on the map to gain access to the data files and to see how the data is interpolated across the state. Here are the sites in Illinois.

https://www.faa.gov/air_traffic/weather/asos/?state=IL

Interpolation

• (nearest neighbor)
• linear
• etc

shepards method is one way to perform that interpolation - http://en.wikipedia.org/wiki/Inverse_distance_weighting

Here is a nice interactive map showing some of the information at various monitoring sites: http://www.wunderground.com/wundermap/

Today Google maps and Google earth are nice common platforms to distribute geospatial information about the earth.

Here is a map from the LA Times that was updated regularly during the Los Angeles 'Station Fire' in August 09 to show where the fire was believed to be, where it seemed to be headed, and where important places in the news were located. Its not an overly professional job but it works really well to give current information about a fast changing news story.

Project Vulcan has a nice tool that makes use of Google earth to look at CO2 production

During the LA 'Station Fire' this map was used to give hourly air quality reports showing how the affect of the fires reached far beyond their immediate area.

WorldProcessor has some rather nice visualizations using the globe as a backdrop - some more literal than others - https://world-processor.com/

A related issue is how those fancy maps are put together. When you use Google maps / earth you may notice different map providers at different zoom levels. Some of the images are taken by satellite, some by airplanes. They all need to be georeferenced and then stitched together to form those seamless images.

These large images are then typically broken down into regular sized images (say 512 x 512 pixels) making them easy to cache and move in and out of memory. Image pyramids are also generated, e.g. a 3 x 3 matrix of 512 x 512 images are combined into a single 512 x 512 image at a higher level allowing fast interactive browsing at multiple scales.

The City of Chicago has a fair amount of data that can be overlaid onto maps of the city
https://data.cityofchicago.org/browse?limitTo=maps

including crime
https://data.cityofchicago.org/Public-Safety/Crimes-2001-to-present-Map/c4ep-ee5m

abandoned vehicles
https://data.cityofchicago.org/Service-Requests/Abandoned-Vehicles-Map/hxh5-e8eh

grocery stores
https://data.cityofchicago.org/Community-Economic-Development/Map-of-Grocery-Stores-with-Neighborhoods-2013/wrhz-xeta

## Coming Next Time

Privacy

last revision 7/28/19
