Billboard Tutorial (CS594 - Final)

- Programming Environment

• OS - linux
• Using OPENGL-2.0, GLSL, GLEW, GLUT, ImageMagick

- Sources

• Application Codes : billboard.c (main source), draw.c (draw a cube for billboard), shader.c (load shader sources) - these codes are based on the application codes of the brick shader tutorial of  3Dlabs.

• Shader Codes : billboard.vert (vertex shader), billboard.frag (fragment shader)


- Step 1 : Constructing the billboard with daylight imagery

• Drawing Background
  Draw a rectangle with background texture setting the camera to look at (0, 0, -1) from the origin. This makes the background looks as if it was drawn by parallel projection. The camera setting will be changed for the billboard. Fixed OpenGL functionality is used for this. Refer to display() in "billboard.c".



• Drawing the billboard and post
  Draw the billboard supported by a post using two cubes. The cube for the billboard has proper texture coordinates and normals (referring to "draw.c"). This time we use billboard shaders to draw them.

  <Vertex Shader>
      // need absolute value of x, y and z component to classify surfaces
      vec3 absNormal  = abs(gl_Normal.xyz);
      float xzLen = length(absNormal.xz);

      // classifying surfaces
      if (xzLen > absNormal.y)
          showContents = true;
      else
          showContents = false;

  The vertex shader informs the fragment shader of side surfaces on which billboard image will be drawn. It decides the side surfaces by comparing the length of x and z component of normal with y component.

      // pass texture coordinate to fragment shader
      gl_TexCoord[0] = gl_MultiTexCoord0;
      gl_Position = ftransform();

  Texture coordinates should be passed to the fragment shader through built-in attribute variable gl_TexCoord to be interpolated properly.

  <Fragment Shader>
     vec2 texCoord = gl_TexCoord[0].xy;
     vec4 myColor = texture2D(colorMap, texCoord);

     if (drawPost || !showContents)
         myColor = vec4(mortarColor*0.3, 1.0);

     gl_FragColor = myColor;

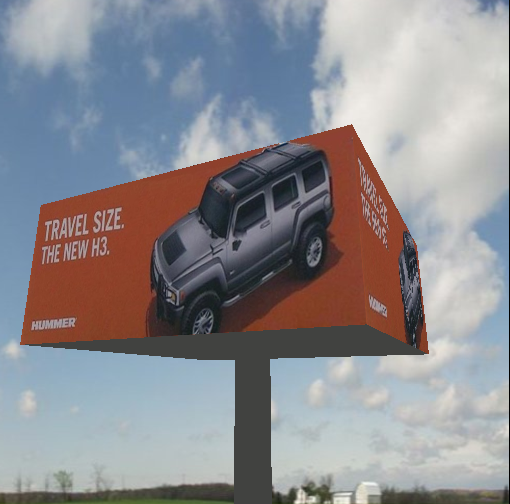

  The fragment shader maps textures on the side surfaces of the billboard cube and uses the mortar color for the top and bottom. "drawPost" is the unifrom variable which makes the post also drawn by the mortar color. The screenshot of step 1 follows.


Links to Source codes

step1.tar.gz

- Step 2 : Lighting for nighttime

• Load another background texture for nighttime and add toggling background

  In the main() of "billboard.c"
  bg[0] = loadTexture("nightStar.jpg");
  bg[1] = loadTexture("sky1.jpg");

  In the display() of the same file
  glBindTexture(GL_TEXTURE_2D, bg[textureID]);

  Toggling textureID when users press key 't'.


• The vertex shader passes the normal and postion of vertices and the light position in eye coordinate to the fragment shader.

  normal = normalize(gl_NormalMatrix * gl_Normal);
  vec4 ecVertex = gl_ModelViewMatrix * gl_Vertex;
  vec4 ecLight = gl_ModelViewMatrix * vec4(lightPos, 1.0);
  ecLightPos = ecLight.xyz;
  ecVertexPos = ecVertex.xyz;


• The fragment shader calculates the light direction per fragment to compute diffuse light. A point light source is placed at the center (0, 0, 0) of the billboard cube so each surface is lighted from back. Because of this, we invert surface normals to compute the light intensity.

      vec3 lightVec = ecLightPos - ecVertexPos;
      float dist = length(lightVec);  // calculate distance from the light source to compute attenuation
      vec3 lightDir = normalize(lightVec);

      vec3 fragNormal = normalize(normal);
      float intensity = 2.5*max(dot(lightDir, -fragNormal), 0.0);

      // no lighting for the post and top/bottom
      if (drawPost || !showContents)
          intensity = 0.0;

      if (intensity > 0.0) {
          float attenuation = 1.0/(1.0 + 0.2*dist*dist);   // quadratic attenuation
          if (!dayTime)
              myColor *= intensity * attenuation;
      }
      else
          myColor = vec4(mortarColor*0.2, 1.0);

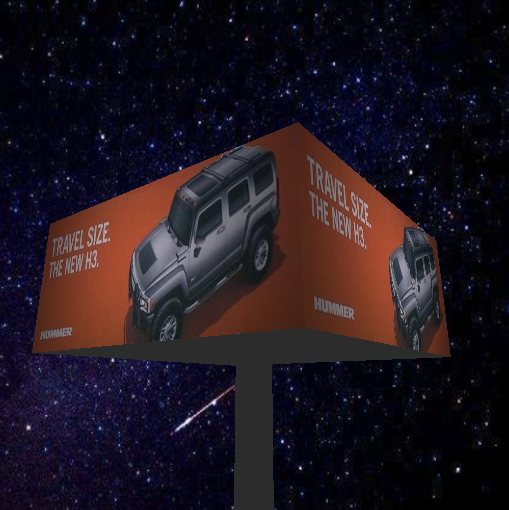

• The result of step 2.


Links to Source codes

step2.tar.gz

- Step 3 : Animate billboard and light source

• In the fragment shader, give offsets to the texture coordinate of billboard image and application code keep increases the offset.

   float texOffset = fract(offset);
   vec2 texCoord = vec2(gl_TexCoord[0].x + texOffset, gl_TexCoord[0].y);


• Adapt lighting constants for the case the light source approaches surfaces very closely

  float intensity = 1.5*max(dot(lightDir, -fragNormal), 0.0);
  float attenuation = 1.0/(1.0 + 0.001*dist*dist);

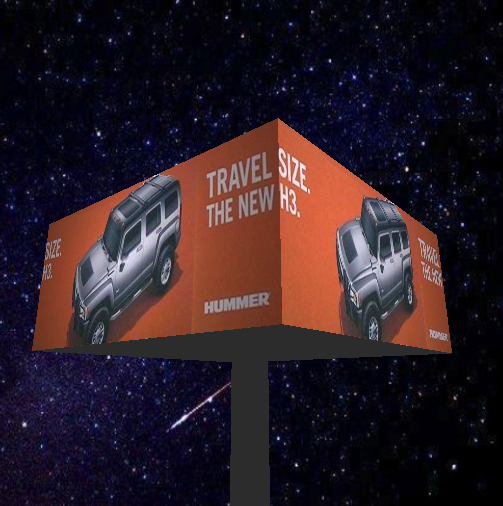

• The result of Step 3.


Links to Source codes

step3.tar.gz

- Step 4 : Add transparency - removing red background of the billboard image

• Draw background to a FBO and add transparency using the texture attached to the FBO
• Get the window coordinates of each fragment from gl_FragCoord and compute the background coordinate for each fragment.
      vec2 bgCoord = gl_FragCoord.xy/winSize;
      vec4 bgColor = texture2D(bgMap, bgCoord);


• By multiplying red component and dividing by blue component, make the red area of the billboard transparent
      float mixRatio = clamp(transparency*myColor.r/myColor.b, 0.01, 0.99);

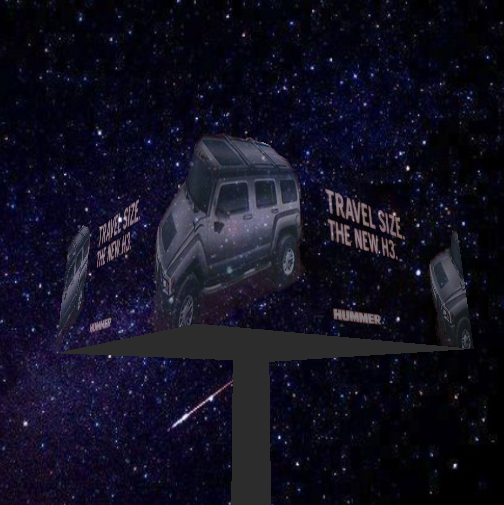

• The final result.


Links to Source codes

step4.tar.gz
