Computer Animation Using Digital
Video for the Web, Multimedia, and Broadcast

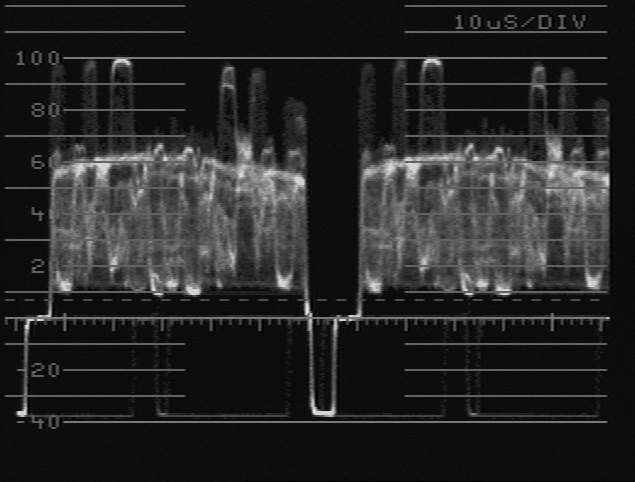

Correct image

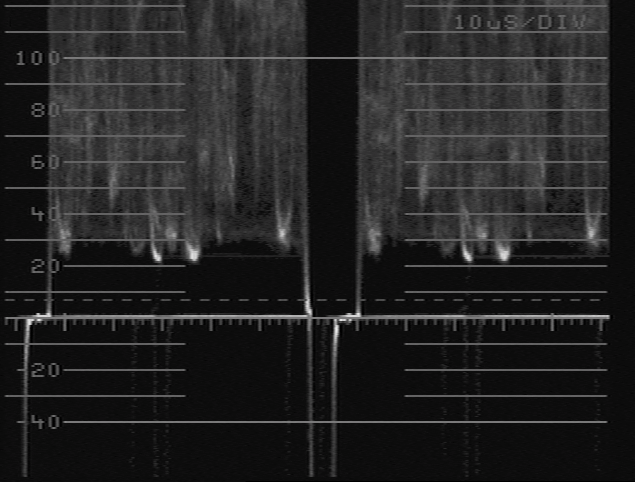

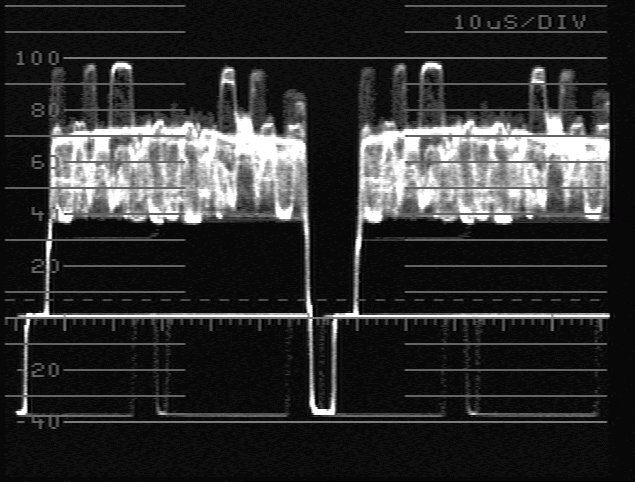

To Much Set-Up

The bottom values or set up of this image are too high

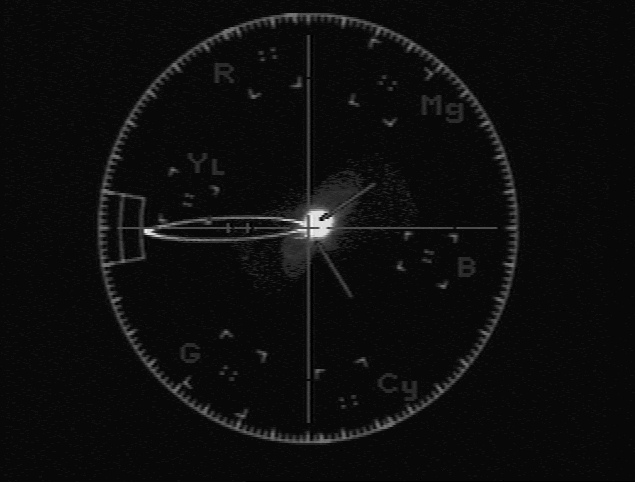

Unterminated

All analog video siganls should be terminated with 75 ohms.

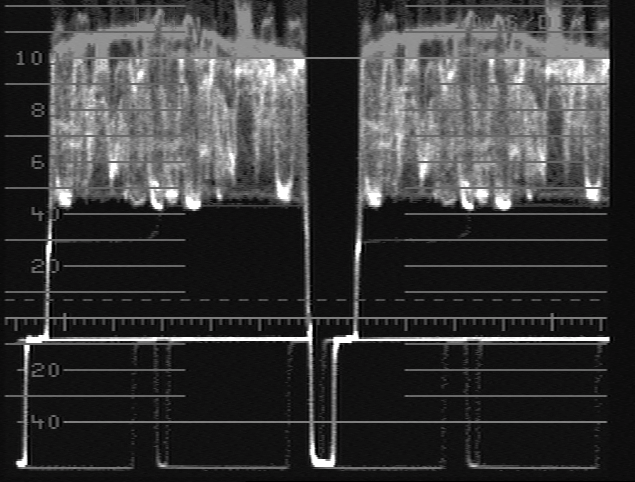

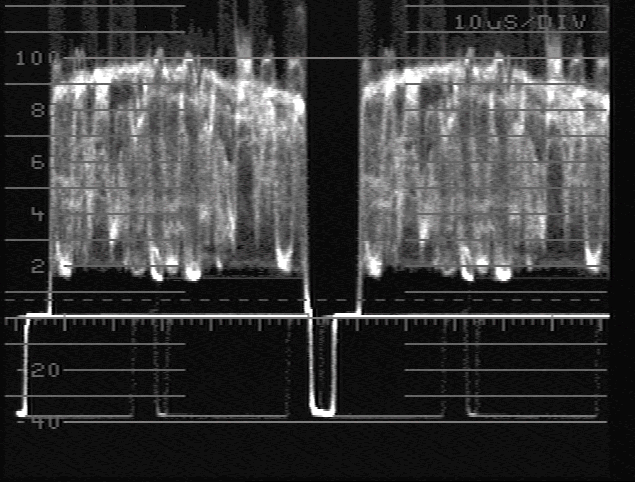

Video Level too high

The top video levels of this image are too high

Video Level compressed to compensate for incorrect set-up

Video gain is wiht in exceptable levels, but set up is incorrect
