Intent

Allow an object to alter its behavior when its internal state changes. The object will appear to change its class.

Motivation

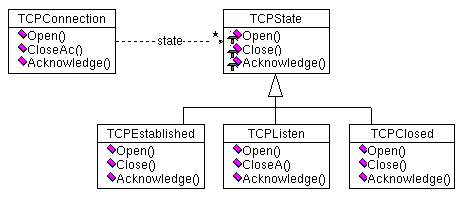

Abstract representations for changes in state are to be created. For example, consider a class TCPConnection that represents different states of a network connection. The effect of a request such as Open depends on the current state of the connection.

By creating an abstract TCPState class, subclasses can define the state-specific behavior.

Applicability

Use the state pattern in either of the following cases:

• An object's behavior depends on its state, and it must change its behavior at run-time depending on that state.
• Operations have large, multipart conditional statements that depend on the object's state. This state is usually represented by one or more enumerated constants. Often, several operations will contain this same conditional structure. The State pattern puts each branch of the conditional in a separate class. This lets you treat the object's state as an object in its own right that can vary independently from other objects.

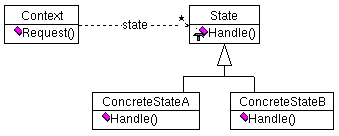

Structure

Participants

• Context: defines the interface of interest to clients and maintains an instance of a ConcreteState subclass that defines the current state.
• State: defines an interface for encapsulating the behavior associated with a particular state of the Context.
• ConcreteState subclasses: each subclass implements a behavior associated with a state of the Context.

Collaborations

• Context delegates state-specific requests to the current ConcreteState object
• A context may pass itself as an argument to the State object handling the request. This lets the State object access the context if necessary.
• Context is the primary interface for clients. Clients can configure a context with State objects. Once a context is configured, its clients don't have to deal with the State objects directly.
• Either Context or the ConcreteState subclasses can decide which state succeeds another and under what circumstances.

Consequences

1. It localizes state-specific behavior and partitions behavior for different states.
2. It makes state transitions explicit.
3. State objects can be shared.

Implementation

1. Who defines the state transitions?
   • State does not specify which participant defines the criteria for state transitions
   • More flexible to allow an interface for Context which will let State objects set the Context's current state
2. A table-based alternative.
   • Cargill maps inputs to state transitions, changeable by modifying data rather than code.
   • Less efficient than a virtual function call
   • Transition criteria are harder to understand
   • Difficult to add actions to accompany state transitions
   • State pattern models behavior, while the table approach focuses on defining state transitions.
3. Creating and destroying State objects.
   • Create when needed or create ahead of time and never destroy?
   • First method avoids objects that will not be used.
   • Second method is best when states may change rapidly and often.
4. Using dynamic inheritance.
   • Not possible in most object-oriented languages.

Sample Code

Consider a C++ model for a TCP connection. Start by defining the TCPConnection class, which will provide an interface for transmitting data and hadles requests to change state.

class TCPOctetStream;
class TCPState;

class TCPConnection {
public:
    TCPConnection();
    void ActiveOpen();
    void PassiveOpen();
    void Close();
    void Send();
    void Acknowledge();
    void Synchronize();
    void ProcessOctet( TCPOctetStream* )
private:
    friend class TCPState;
    void ChangeState( TCPState* );
private:
    TCPState* _state;
};

TCPConnection keeps an instance of the TCPState class in the _state member variable. The class TCPState duplicates the state-changing interface of TCPConnection.

class TCPState {
public:
    virtual void Transmit( TCPConnection*, TCPOctetStream* );
    virtual void ActiveOpen( TCPConnection* );
    virtual void PassiveOpen( TCPConnection* );
    virtual void Close( TCPConnection* );
    virtual void Synchronize( TCPConnection* );
    virtual void Acknowledge( TCPConnection* );
    virtual void Send( TCPConnection* );
protected:
    void ChangeState( TCPConnection*, TCPState* );
};

TCPConnection delegates all state-specific requests to its TCPState instance. It also provides an operating for changing this variable to a new TCPState. The constructor initializes the object to the TCPClosed state.

TCPConnection::TCPConnection()
{ _state = TCPClosed::Instance(); }

void TCPConnection::ChangeState( TCPState *s )
{ _state = s; }

void TCPConnection::ActiveOpen()
{ _state->ActiveOpen(this); }

void TCPConnection::PassiveOpen()
{ _state->PassiveOpen(this); }

void TCPConnection::Close()
{ _state->Close(this); }

void TCPConnection::Acknowledge()
{ _state->Acknowledge(this); }

void TCPConnection::Synchronize()
{ _state->Synchronize(this); }

TCPState implements default behavior for all requests delegated to it. It can change the state of a TCPConnection with ChangeState(). It is declared a friend of TCPConnection to give it privilaged access to this operation.

void TCPState::Transmit( TCPConnection*, TCPOctetStream* ) {}
void TCPState::ActiveOpen( TCPConnection* ) {}
void TCPState::PassiveOpen( TCPConnection* ) {}
void TCPState::Close( TCPConnection* ) {}
void TCPState::Synchronize( TCPConnection* ) {}

void TCPState::ChangeState( TCPPConnection *t, TCPState *s )
{ t->ChangeState(s); }

Subclasses of TCPState implement state-specific behavior. A TCP connection can be in many states: Established, Listening, Closed, etc., and there's a subclass of TCPState for each state. Consider those three states.

class TCPEstablished : public TCPState {
public:
    static TCPState* Instance();
    virtual void Transmit( TCPConnection*, TCPOctetStream* );
    virtual void Close( TCPConnection* );
};

class TCPListen : public TCPState {
public:
    static TCPState* Instance();
    virtual void Send( TCPConnection* );
    // ...
};

class TCPClosed : public TCPState {
public:
    static TCPState* Instance();
    virtual void ActiveOpen( TCPConnection* );
    virtual void PassiveOpen( TCPConnection* );
    // ...
};

The subclasses maintain no local state, so they can be shared and only one instance of each is required. The unique instance of each TCPState subclass is obtained by the static Instance() operation, thus making the class a Singleton.

Each subclass implements state-specific behavior for valid requests in the state:

void TCPClosed::ActiveOpen( TCPConnection *t ) {
    // send SYN, receive SYN, ACK, etc.
    ChangeState( t, TCPEstablished::Instance() );
}

void TCPClosed::PassiveOpen( TCPConnection *t ) {
    ChangeState( t, TCPListen::Instance() );
}

void TCPEstablished::Close( TCPConnection *t ) {
    // send FIN, receive ACK of FIN
    ChangeState( t, TCPListen::Instance() );
}

void TCPEstablished::Transmit( TCPConnection *t, TCPOctetStream *o ) {
    t->ProcessOctet( o );
}

void TCPListen::Send( TCPConnection *t ) {
    // send SYN, receive SYN, ACK, etc.
    ChangeState( t, TCPEstablished::Instance() );
}

After performing state-specific work, these operations call the ChangeState() operation to change the state of the TCPConnection. The TCPConnection itself doesn't know a thing about the TCP connection protocol, it's the TCPState subclasses that define each state transition and action in TCP.

Known Uses

• TCP connection protocols (see motivation)
• Drawing tools

Consider the pressing of buttons on the CAVE wand. Currently, this is done by using if statements to check for CAVEBUTTON1, CAVEBUTTON2, and CAVEBUTTON3. Implementing these into a State pattern allows for extendibility should other devices be used the future.

Related Patterns

The Flyweight pattern explains when and how State objects can be shared. State objects are often Singletons.

Sourced from Design Patterns: Elements of Reusable Object-Oriented Software, by Erich Gamma, Richard Helm, Ralph Johnson, John Vlissides, and Grady Booch, Addison-Wesley Publishing Company, 1994.
