Details of EVL_Fullbody_1 template configuration.

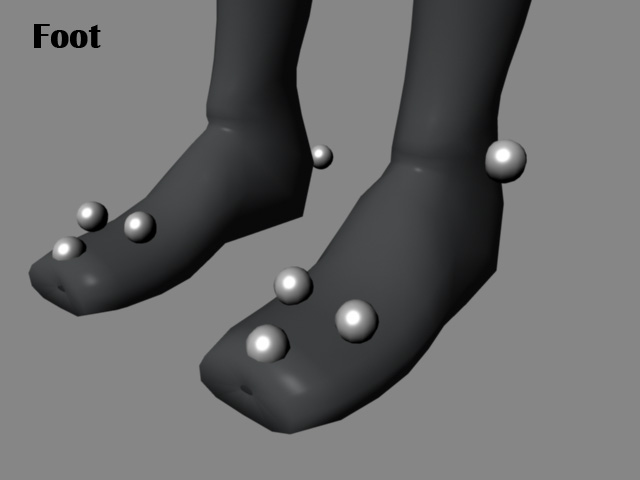

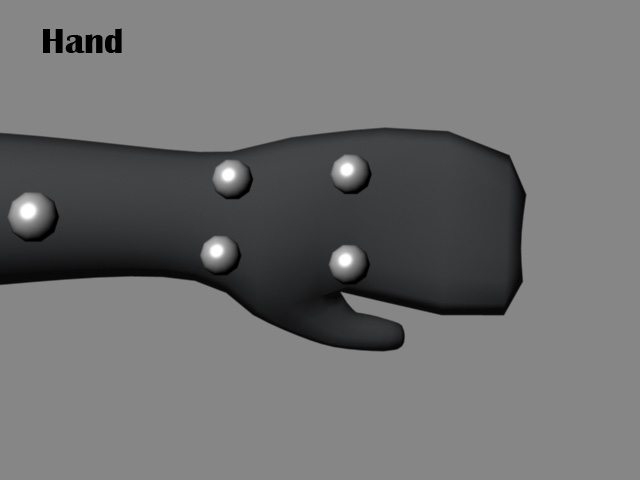

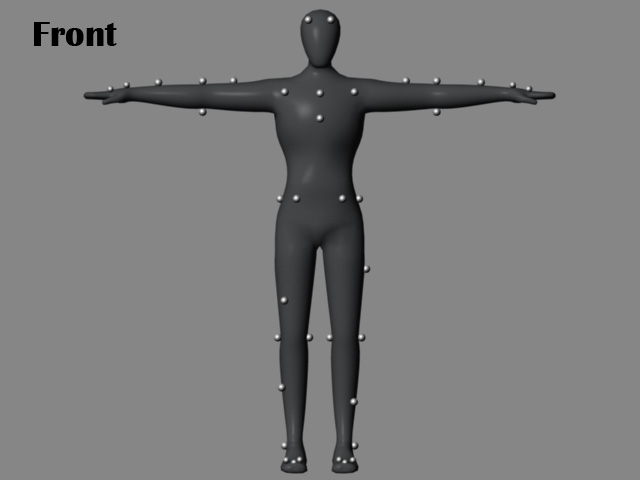

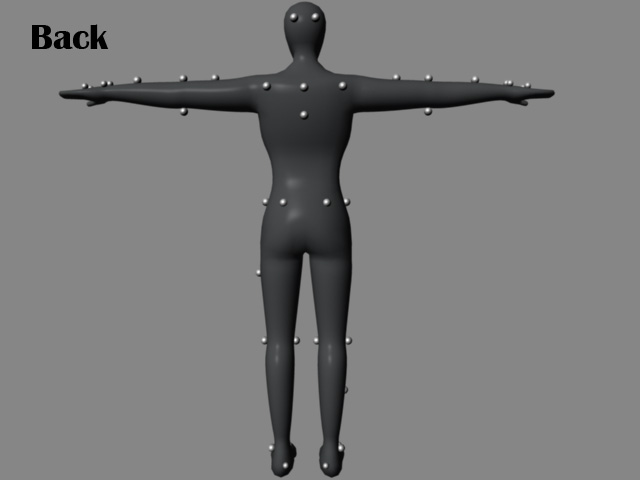

This template has total 52 markers around the body. Following Figures shows the model and marker attachment illustration.
(Sometimes using this template, you may get oftern occulusion of inner elbow markers and inner knee markers by the other part of body. If it happens too oftern, you may consider the other template file that does not have these markers.)
Marker Label (name)
| Name | Desc. |
|---|---|
| LFHD | Left Front Head |
| RFHD | Right Front Head |
| LBHD | Left Back Head |
| RBHD | Right Back Head |
| C7 | Upper back |
| T10 | Lower back |
| CLAV | Clavicle |
| STRN | Sternum |
| LFWT | Left Front Waist |
| RFWT | Right Front Waist |
| LBWT | Left Back Waist |
| RBWT | Right Back Waist |
| LHIP | Left Hip |
| RHIP | Right Hip |
| LTHI | Left Thigh |
| LKNE | Left Knee outside |
| LKNI | Left Knee inside |
| LSHIN | Left Shin |
| LANK | Left Ankle |
| LHEL | Left Heel |
| LMT1 | Left foot point where big toe starts |
| LMT5 | Left foot outside where toes starts |
| LTOE | Left toe end |
| RTHI | Right Thigh |
| RKNE | Right Knee outside |
| RKNI | Right Knee inside |
| RSHIN | Right Shin |
| RANK | Right Ankle |
| RHEL | Right Heel |
| RMT1 | Right foot point where big toe starts |
| RMT5 | Right foot outside where toes starts |
| RTOE | Right toe end |
| LBSH | Left Back Shoulder |
| LFSH | Left Front Shoulder |
| LUPA | Left Upper Arm |
| LELB | Left Elbow outside |
| LIEL | Left Elbow inside |
| LFOR | Left Fore Arm |
| LWThumb | Left Wrist Thumb side |
| LWPinky | Left Wrist Pinky side |
| LHThumb | Left Hand Thumb start point |
| LHPinky | Left Hand Pinky start point |
| RBSH | Right Back Shoulder |
| RFSH | Right Front Shoulder |
| RUPA | Right Upper Arm |
| RELB | Right Elbow outside |
| RIEL | Right Elbow inside |
| RFOR | Right Fore Arm |
| RWThumb | Right Wrist Thumb side |
| RWPinky | Right Wrist Pinky side |
| RHThumb | Right Hand Thumb start point |
| RHPinky | Right Hand Pinky start point |
