Details of EVL_Fullbody_2 template configuration.

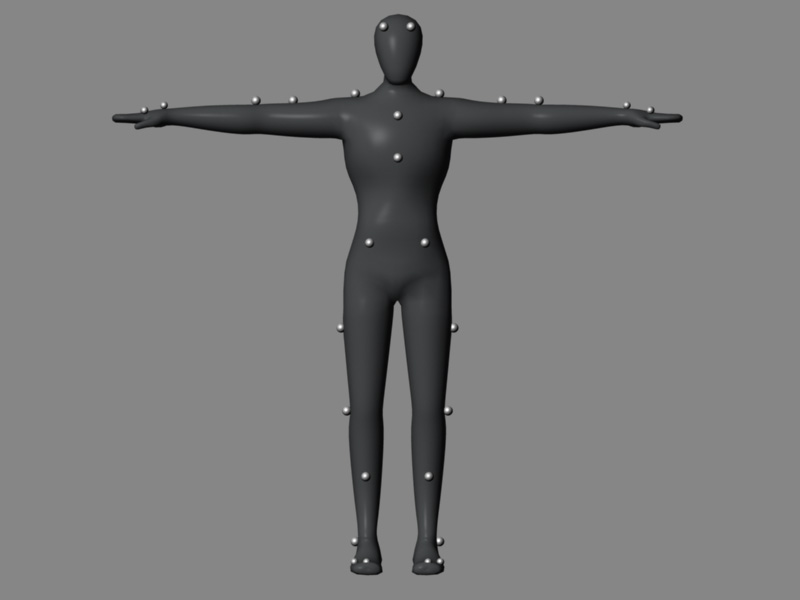

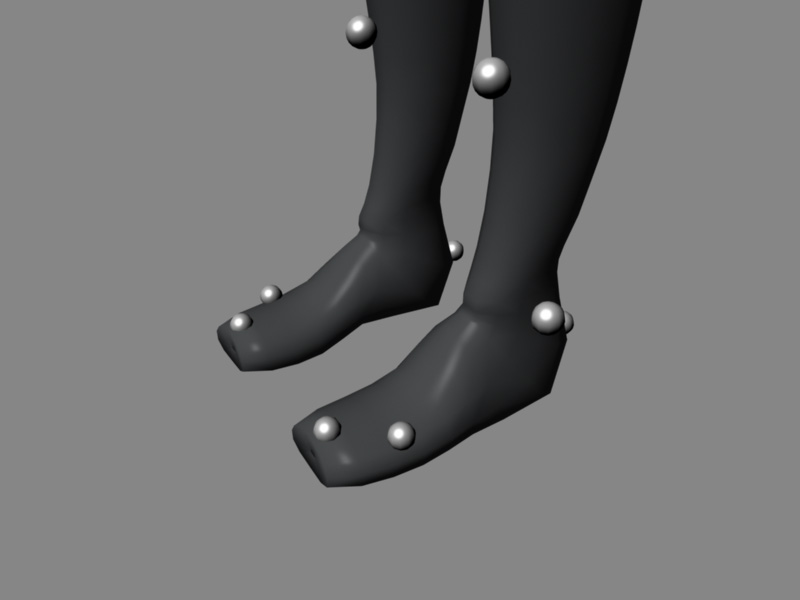

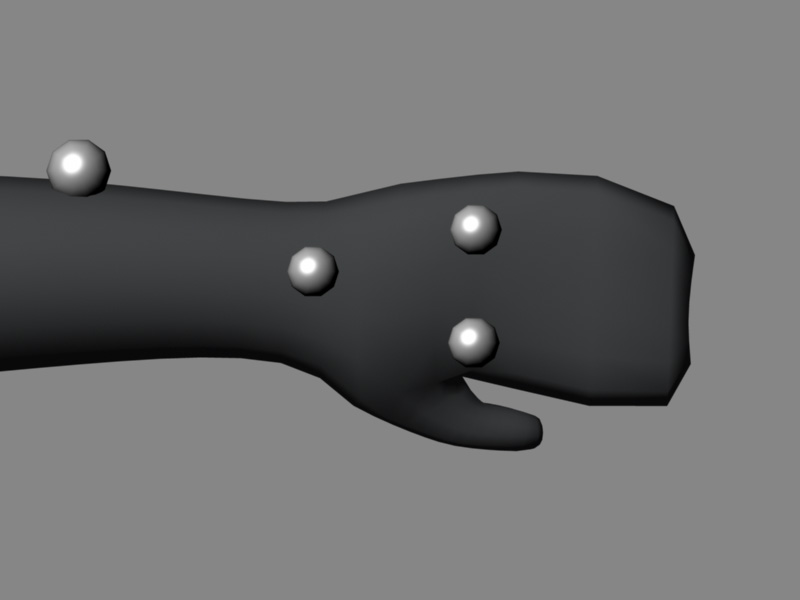

This template has total 47 markers around the body. Following Figures shows the model and marker attachment illustration.
Marker Label (name)
| Name | Desc. |
|---|---|
| LFHD | Left Front Head |
| RFHD | Right Front Head |
| LBHD | Left Back Head |
| RBHD | Right Back Head |
| TSpine | Top Spine |
| MidBack | Lower back |
| LBack | Left back |
| RBack | Right back |
| LowBack | Lower back |
| Root | Root |
| RPelvis | Right Pelvis |
| CLAV | Clavicle |
| STRN | Sternum |
| LFWT | Left Front Waist |
| RFWT | Right Front Waist |
| LBWT | Left Back Waist |
| RBWT | Right Back Waist |
| LHIP | Left Hip |
| RHIP | Right Hip |
| LTHI | Left Thigh |
| LKNE | Left Knee outside |
| LSHIN | Left Shin |
| LANK | Left Ankle |
| LHEL | Left Heel |
| LMT5 | Left foot outside where toes starts |
| LTOE | Left toe end |
| RTHI | Right Thigh |
| RKNE | Right Knee outside |
| RSHIN | Right Shin |
| RANK | Right Ankle |
| RHEL | Right Heel |
| RMT5 | Right foot outside where toes starts |
| RTOE | Right toe end |
| LSH | Left Shoulder |
| LUPA | Left Upper Arm |
| LELB | Left Elbow outside |
| LFOR | Left Fore Arm |
| LWrist | Left Wrist |
| LHThumb | Left Hand Thumb start point |
| LHPinky | Left Hand Pinky start point |
| RSH | Right Shoulder |
| RUPA | Right Upper Arm |
| RELB | Right Elbow outside |
| RFOR | Right Fore Arm |
| RWrist | Right Wrist |
| RHThumb | Right Hand Thumb start point |
| RHPinky | Right Hand Pinky start point |
