HiMD Unit | SONY MZ-NH1 |
Minidisc | SONY ES 74min |
Headphones | Sennheiser MX500 and SONY MDR-E888 |
Hardware (PC) |
CPU - Dual Xeon 2.4 RAM - 1GB RDRAM SOUND - SoundBlaster Live! Platinum 5.1 |
Software (PC) |
see Spectral View Waveform View - Adobe Audition 1.5 CD Playing - Winamp 5.05 WAV Conversion - HiMD Renderer 0.31 Transfer to Hard Drive - SonicStage 2.3 |
Sound Volume Setting (while analogf/digital recoding): |
Main - 100% WAV/MP3 - 100% Winamp - 80% MZ-NH1 - auto |
CD information |
Artist - Dido Album - No Angel Song - Thank You (track #6) |
I record the song, Dido-Thank You, with several different ways: 1. Digital (optical) Recording in HiMD PCM 2. Analog (from Headphone out from sound card) Recording in HiMD PCM 3. Digital (optical) Recording in HiMD HiSP *4. SonicStage optimized file in HiMD HiSP See Differences in Spectral View *Note: I transferred the song from CD to minidisc with SonicStage and then put it back to hard drive from the minidisc. The file has gone from the minidisc and not shown on My Library either. I had to use optimized file for #4 HiMD HiSP. |
|

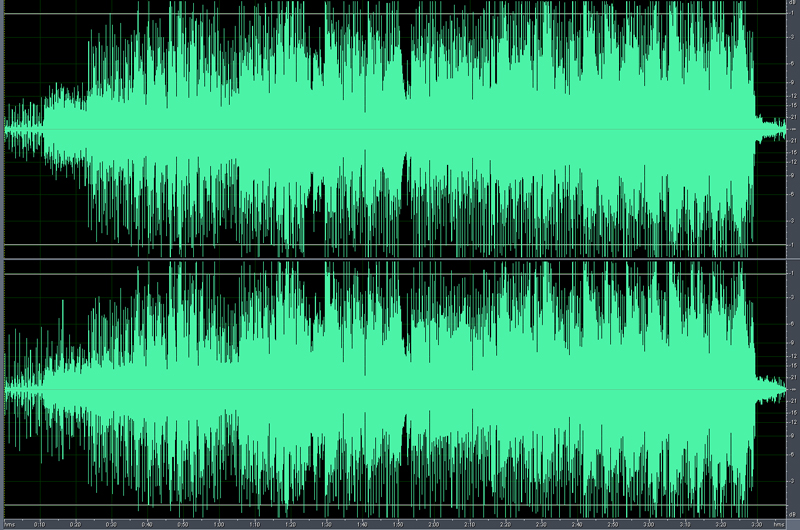

Original CD ![]() |
|

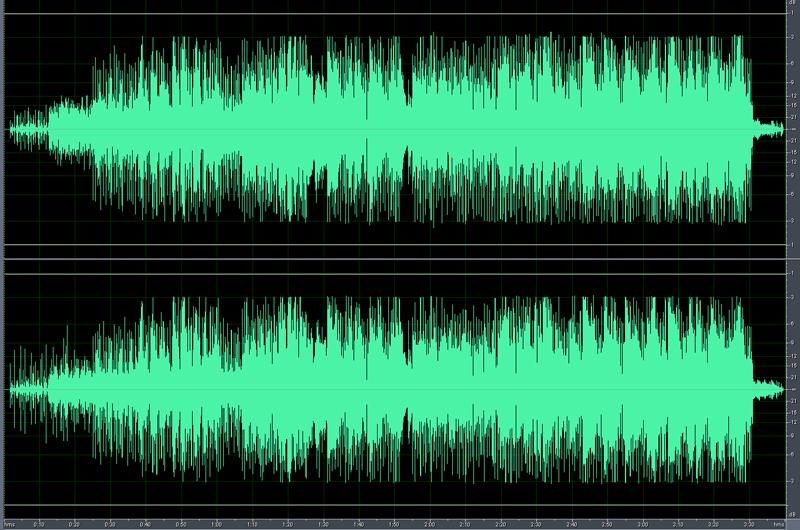

Digital Recording HiMD PCM - Playing with Winamp 5.05 and optical digital-out from SoundBlaster Live! 5.1 to MZ-NH1 optical-in - Recording in HiMD PCM mode - Upload to hard drive from minidisc with SonicStage and then convert it to WAV with HiMD Renderer ![]() |
|

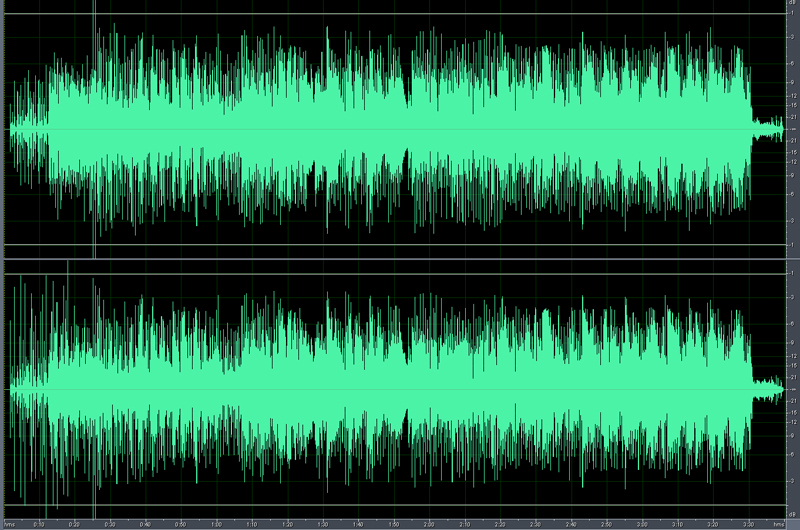

Analog Recording HiMD PCM - Playing CD with Winamp 5.05 and headphone-out from SoundBlaster Live! 5.1 to MZ-NH1 line-in - Recording in HiMD PCM mode - Upload to hard drive from minidisc with SonicStage and then convert it to WAV with HiMD Renderer ![]() |
|

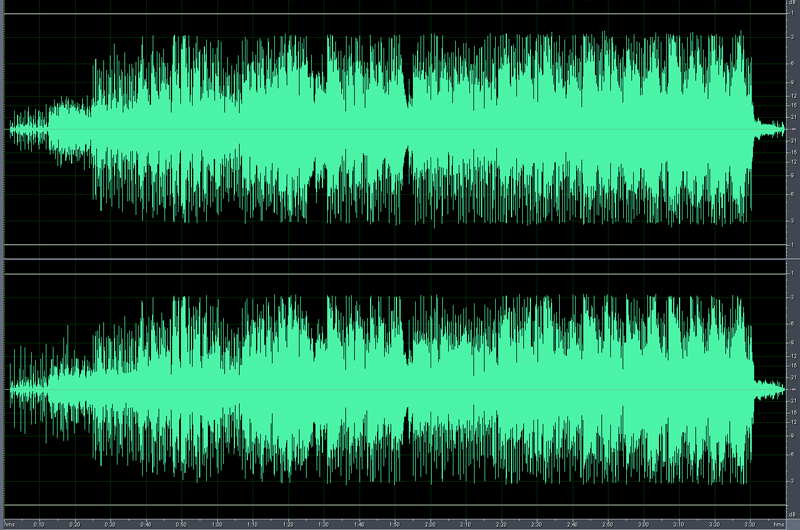

Digital Recording HiMD HiSP - Playing CD with Winamp 5.05 and optical digital-out from SoundBlaster Live! 5.1 to MZ-NH1 optical-in - Recording in HiMD HiSP mode - Upload to hard drive from minidisc with SonicStage and then convert it to WAV with HiMD Renderer ![]() |
|

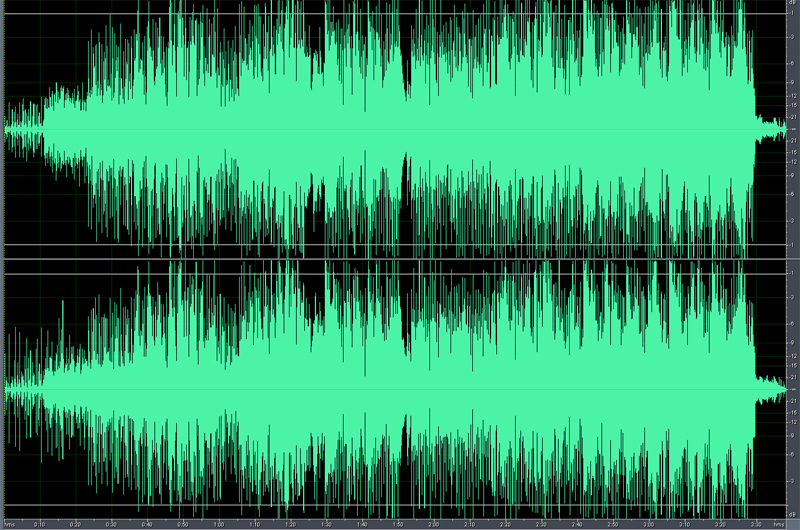

Optimized File HiMD HiSP - Rip it from CD to My Library of SonicStage and then convert it to WAV with HiMD Renderer ![]() |
|

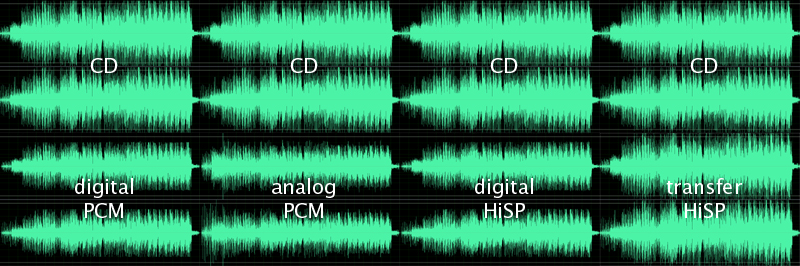

Comparing all waveform views ![]() |
